Passes Self tests.

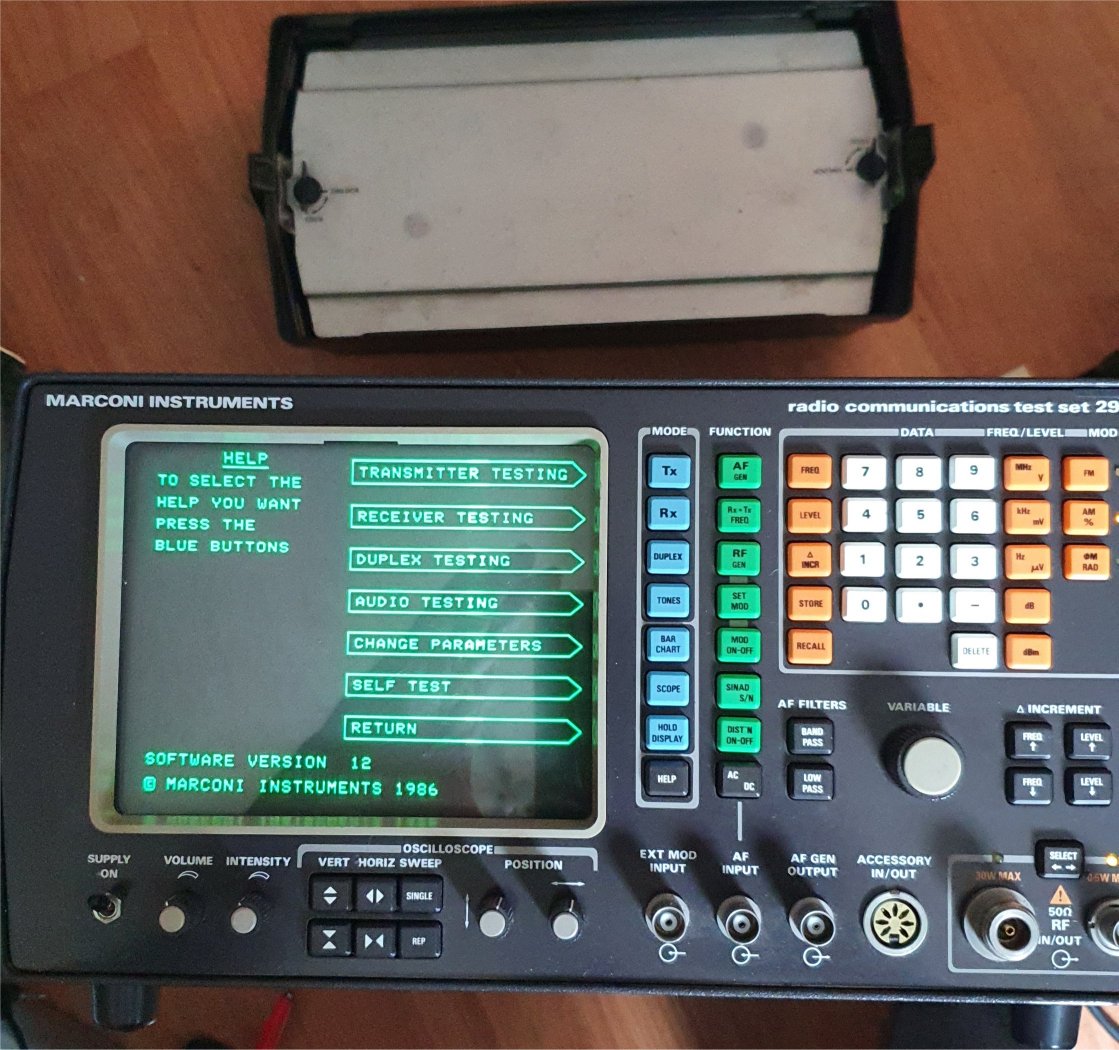

Firmware version.


Generator RF Level output at 300MHz

Agilent Power meter measuring 0dBm out at 300MHz.

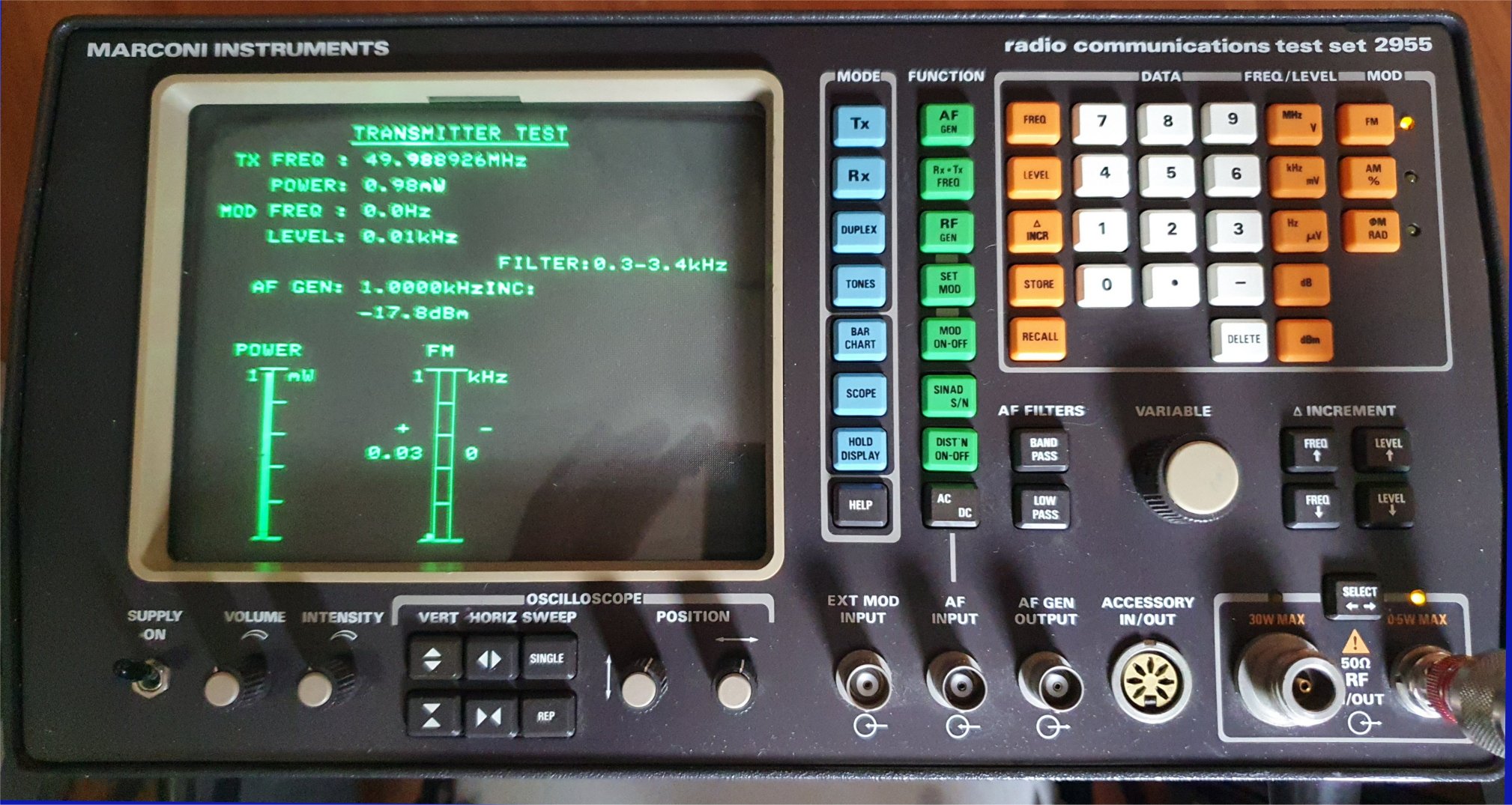

Measurement of Agilent Power meter 50MHz calibrator, Accurate 0dBm at 50MHz.


Measuring modulated sig gen (Another 2955!), 0dBm, 1kHz tone, 1.5kHz deviation

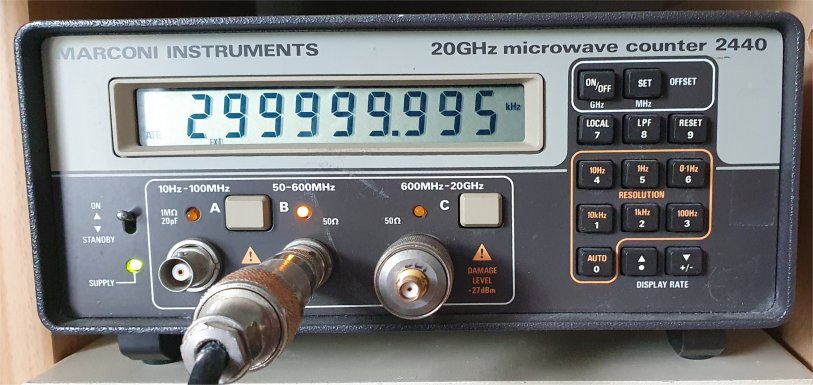

Frequency accuracy of the RF generator. Counter is locked to GPS disciplined source

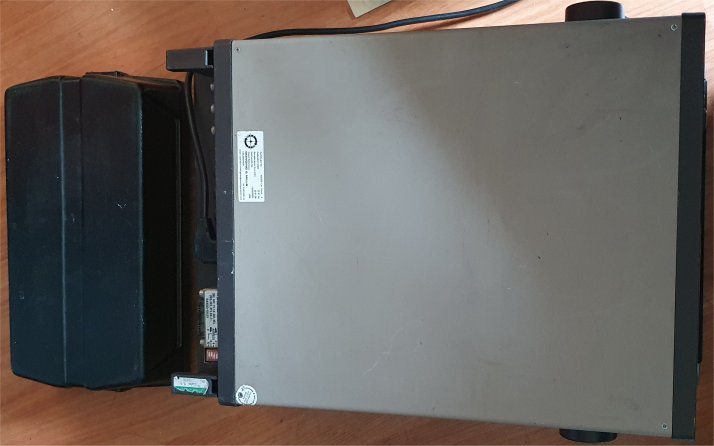

Top view and lid
